4380
- ApplicationsHVAC-system pumping and control; general purpose pumping; industrial/process pumping and control (water or glycol based)

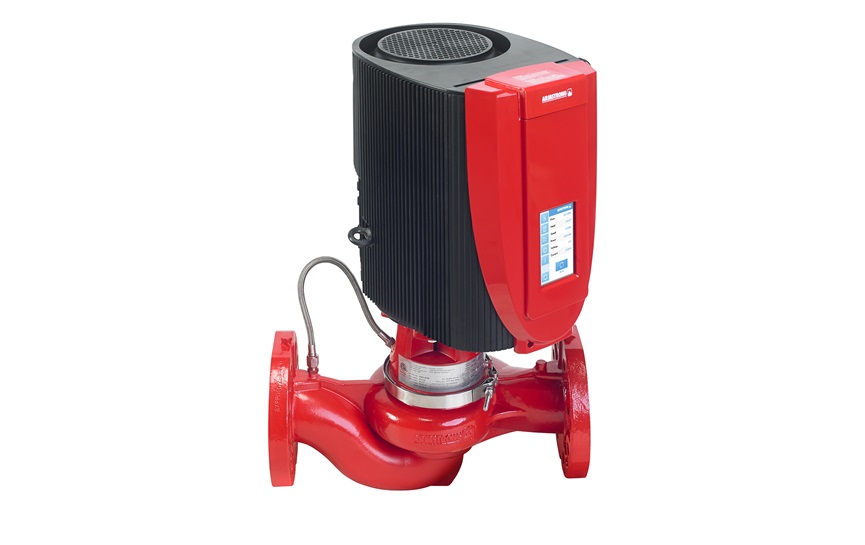

- DescriptionPipe-mounted UL 778 pumping unit with integrated intelligent controls for space-saving installation and superior energy performance. Saves up to 75% in energy over comparable traditional constant speed or variable frequency operated pump installations. Remote services through internet to enhance reliability and sustain optimal performance over life of pumps.
- Materials
- Ductile iron e-coated casing
- Stainless steel impeller
- Sintered silicon carbide mechanical seal
- ConfigurationOn-board Intelligent Variable Speed controls with Sensorless control. Controls enclosure UL type 12 or UL type 4X for outdoor applications. 1-10hp range standard with DEPM motors that reduce losses by more than 20% over NEMA Premium efficiency. Network capable for remote performance management services.
- Performance range15 to 450 USgpm (1 to 28 L/s) flow; 10 to 160 ft (3 to 48 m) head (composite curves available)
- Temperature250oF (121oC)
- Power Range0.25 hp to 10 hp (0.19 kW to 7.5kW)
- Size1″ to 6″ (25 mm to 150 mm)
